Bitcoin Miner Power Supply
Bitcoin miner power supply
Part No.: AP187 Power Supply Type: Bitcoin Miner Power Supply Special Feature: 1.AC-DC power supply 2.work at 90~264vac input and have multiple outputs 3.output over-current / over-voltage/ over-temperature and short circuit protection 4.meets UL、TUV+CE、CCC requirement
Electrical characteristics
| Input | Output | |||
| Rated voltage | 100~240vac | Voltage | 5Vdc | 12Vdc |
| Voltage range | 100~240Vac | Current | 0~5A | 0~11.7A |
| Frequency | 47~63Hz | Regulation | ±1% | ±3% |
| Efficiency | ≥85% | Ripple and noise | ≤50mVp-p | ≤120mVp-p |
| Leakage current | ≤3.5mA | |||
Safety characteristics
| Safety standard | ||
| Safety | UL60950、EN60950,UL、TUV+CE、CCC | |
| EMC | CE | CLASS B, less than 6 dB |
| RE | CLASS B, less than 6 dB | |
| Withstand voltage | |
| Input-output Withstand voltage | 3000Vac/10mA/1min |
| Input-FG Withstand voltage | 1800Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -40~+55 |
| Relative Humidity | 0%—85%｜0%—95% |
| Storage temp. | -40~+85 |
| Cooling | Natural convection |

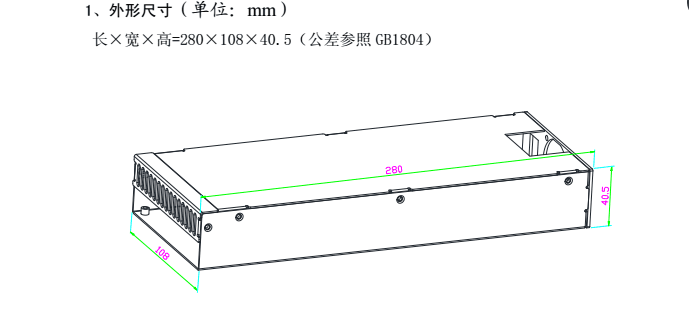

Structure drawing
