Bitcoin Miner Power Supply
2400W power supply for miners
Part No.:AP299 Power Supply Type:Bitcoin Miner Power Supply Special Feature:2400W Power Supply for bitcoin miners like Avalon A920, A921, Ebang Ebit9, or L3+. Also work with ETH miners Innosilicon A10 and A10 Pro miners. High quality industrial grade electronic parts&components to promise 24 hours long time working -100%New -Effciency 93~94% -Including 10 pcs 6pin PCIE connectors -Six months warranty -Input: 200-300Vac -Output: 12V DC 180Amp (Input 185-264Vac) , or 12VDC 120A （input 85-135V ac) -Applications: btc miner, antminer, INNOSILCON, WAHTSMINER, Bitminer
Electrical characteristics
| Input | Output | |||
| Rated voltage | 100~240vac | Voltage | 12VDC | |
| Voltage range | 85-285Vac | Current | 180A | |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ||
| Efficiency | ≥93% | Ripple and noise | ≤200mVp-p | ≤120mVp-p |
| Leakage current | ≤0.3mA | |||
Safety characteristics
| Safety standard | ||
| Safety | EN60950-1 | |
| EMC | CE | EN55022, CLASS B |
| RE | EN550012,CLASS A | |
| Withstand voltage | |
| Input-output Withstand voltage | 1500V AC |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | 4000Vac/10mA/1min |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | 4000Vac/10mA/1min |
Operating Environment
| Operating Temperature | 0~50 |
| Relative Humidity | 10%~95% |
| Storage temp. | -40℃ ~ +70℃ |
| Cooling | forced air cooling |

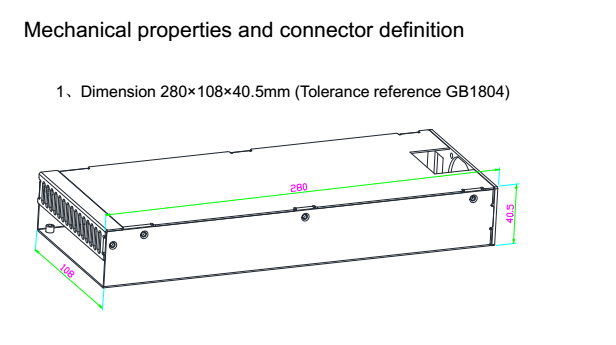

Structure drawing
