Bitcoin Miner Power Supply
2600W PSU AP302 for Avalon A1027 A1046 A1047
Part No.:AP302 Power Supply Type:Bitcoin Miner Power Supply Special Feature:PSU2600-01 Switching Power Supply for Avalon miner A1027 A1046 A1047 Model:PSU2600-01 Input:200-285V AC 50/60Hz 16A Max Output:12.5V-14.5V / 2450W 12V / 150w Application:BTC miner Avalon A1026 Aa1027 A1046 A1047
Electrical characteristics
| Input | Output | |||
| Rated voltage | 200~240Vac | Voltage | 12.5-14.5V | 12V | |
| Voltage range | 200-285V AC | Current | 196A | 12.5A | |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ±1% | ±3% |
| Efficiency | ≥93% | Ripple and noise | ≤200mVp-p | ≤120mVp-p |
| Leakage current | ||||
Safety characteristics
| Safety standard | ||
| Safety | EN55022 ,CLASS B | |
| EMC | CE | EN55022, CLASS B |
| RE | CLASS B, less than 6 dB | |
| Withstand voltage | |
| Input-output Withstand voltage | 1500V AC |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/5mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -40~+55 |
| Relative Humidity | 0%—85%｜0%—95% |
| Storage temp. | -40℃~+85℃ |
| Cooling | forced air cooling |

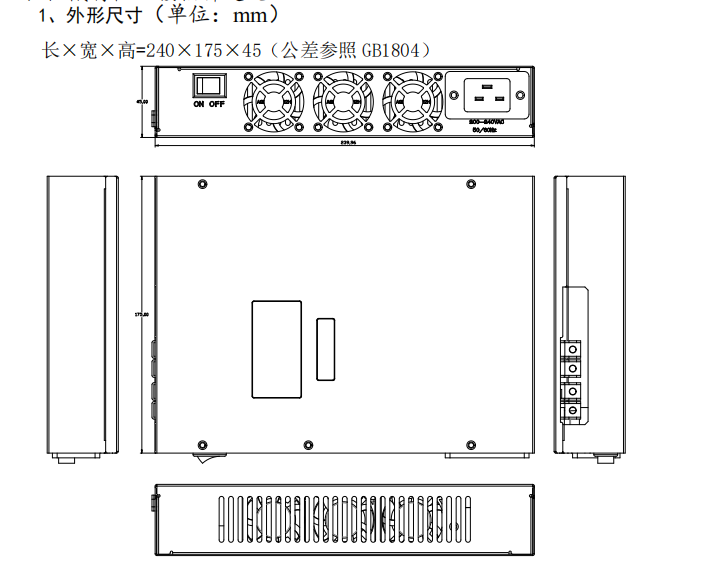

Structure drawing
