Bitcoin Miner Power Supply
PSU3300-01 Power for Miner
Part No.:AP639 Power Supply Type:Bitcoin Miner Power Supply Special Feature:3300W Power Supply for Bitcoin Miner Avalon A1066 Pro Mode: PSU3300-01 Input: 200V—285Vac 50/60Hz 16A Max Output: 11.5V-14V / 3100W 12V /200W Suitable for Bitcoin Miner Avalon A1057 A1066 A1066Pro
Electrical characteristics
| Input | Output | |||
| Rated voltage | 200~240Vac | Voltage | 11.5-14V | 12V | |
| Voltage range | 200-285V AC | Current | 258A | 16.7A | |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ±1% | ±3% |
| Efficiency | ≥93% | Ripple and noise | ≤200mVp-p | ≤120mVp-p |
| Leakage current | ||||
Safety characteristics
| Safety standard | ||
| Safety | EN55022 ,CLASS B | |
| EMC | CE | EN55022, CLASS B |
| RE | EN55011,CLASSB | |
| Withstand voltage | |
| Input-output Withstand voltage | 1500V AC |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -40~+55 |
| Relative Humidity | 0%—85%｜0%—95% |
| Storage temp. | -40~+85 |
| Cooling | forced air cooling |

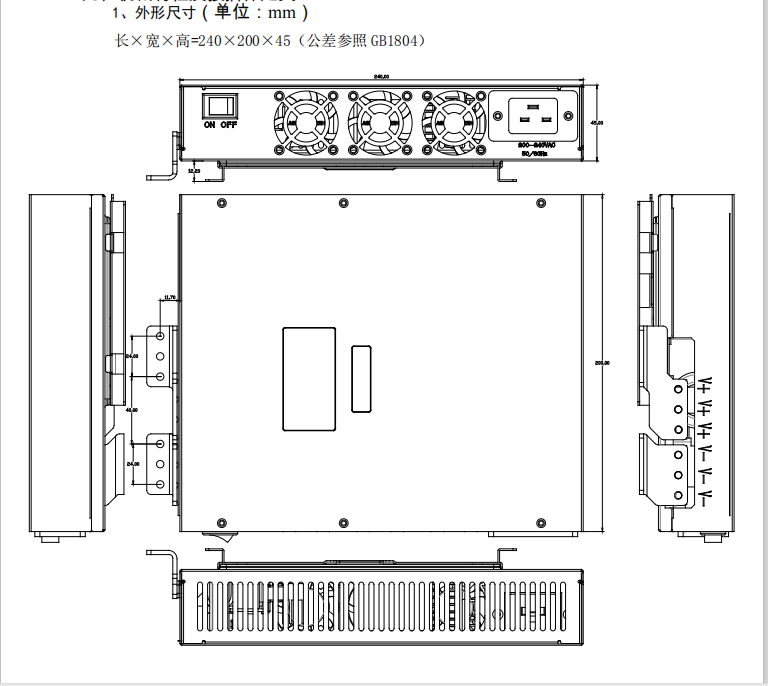

Structure drawing
